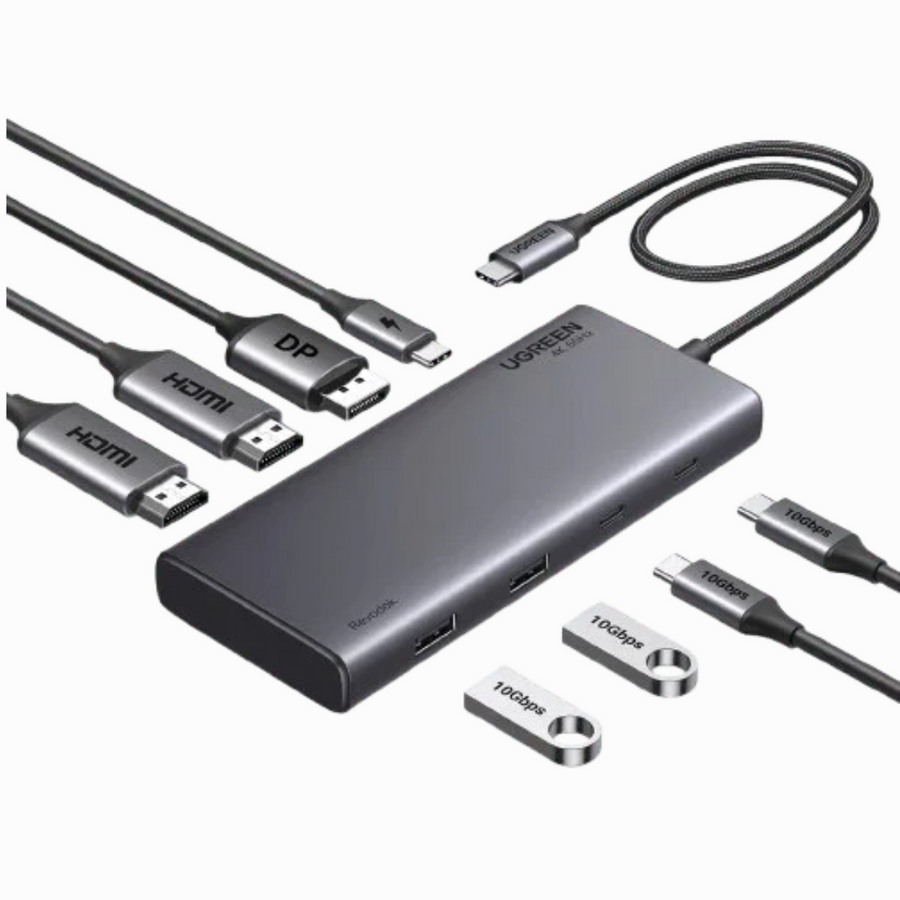

UGREEN Revodok Pro 8-in-1 USB-C Docking Station(35625)

UGREEN Revodok Pro 8-in-1 USB-C Docking Station (35625) | Triple Video Interface (Dual HDMI 2.0 + DisplayPort 1.4) | Dual 4K@60Hz Extended Displays (Windows MST & macOS SST) | 10Gbps Blazing Data Transfer (1x USB-C 3.2 Gen 2 + 1x USB-A 3.2 Gen 2) | 100W USB-C PD Pass-Through (85W Host Fast Charging) | 2x USB-A 3.0 Peripheral Ports | Heat-Dissipating Aluminum Unibody

Dual 4K@60Hz Visual Expansion, 10Gbps Blazing Data Speed: Turn a Single USB-C Port into an 8-Port Workstation Hub with Dual HDMI, DisplayPort 1.4, 100W Power Delivery, and High-Speed USB 3.2 Gen 2 Transfers.

The UGREEN Revodok Pro 8-in-1 USB-C Dual/Triple Display Docking Station (Model: 35625 / CM681) is a multi-port workstation adapter created for high-end users, engineers, video editors, and multiple display systems. It comes with triple video output connectors (2 HDMI connectors and 1 DisplayPort), which let you plug in dual 4K@60Hz displays, a high speed of data transfer of 10Gbps with both USB-C 3.2 Gen 2 and USB-A 3.2 Gen 2 ports, and Power Delivery of 100W (with 85W available for the host). Thus, it transforms the USB-C or Thunderbolt port of your laptop into a powerful desktop workstation.

PRODUCT INTRODUCTION

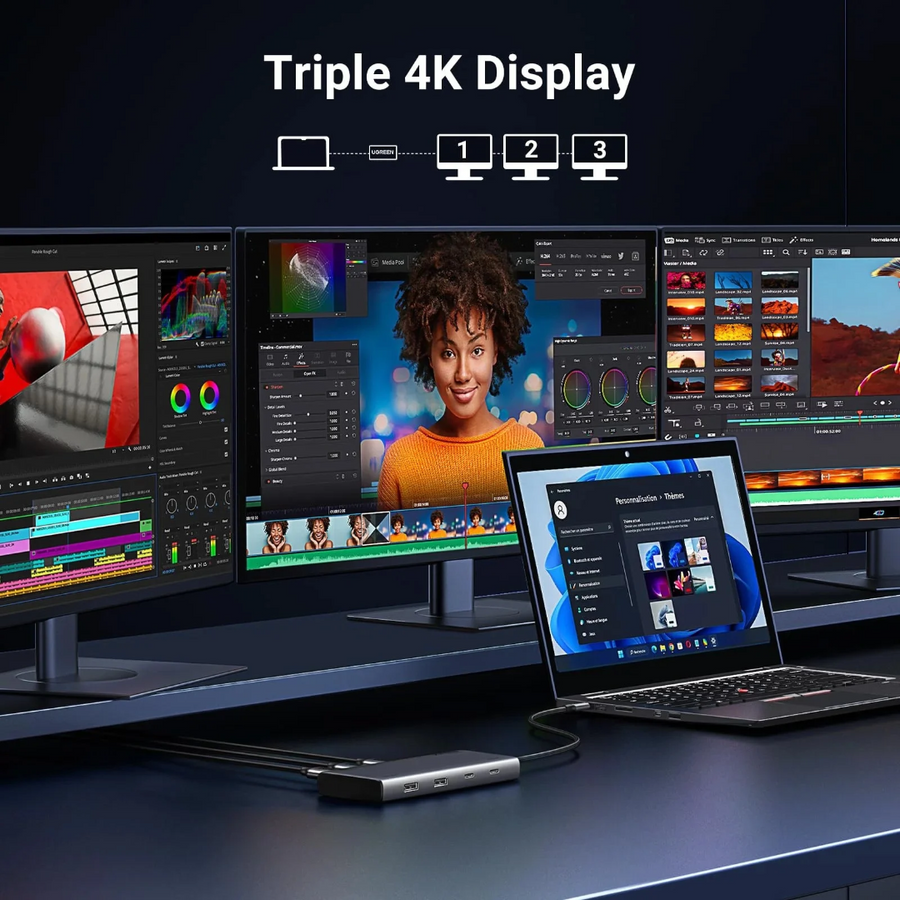

Simultaneous 4K@60Hz Dual-Monitor Functionality through HDMI and DisplayPort

UGREEN Revodok Pro 8-in-1 (35625) removes visual limitations, providing three separate display connectors. The device has two HDMI 2.0 ports as well as a DisplayPort 1.4 connector. The device operates well with dual external displays at a resolution of 4K with FPS of 60hz (MST mode) from Windows laptops that support DP DSC technology. It provides software developers, financial experts, and video producers with more screen space and no flickers or drops. This method enables the single display output to reach 4K@60Hz HDR resolution.

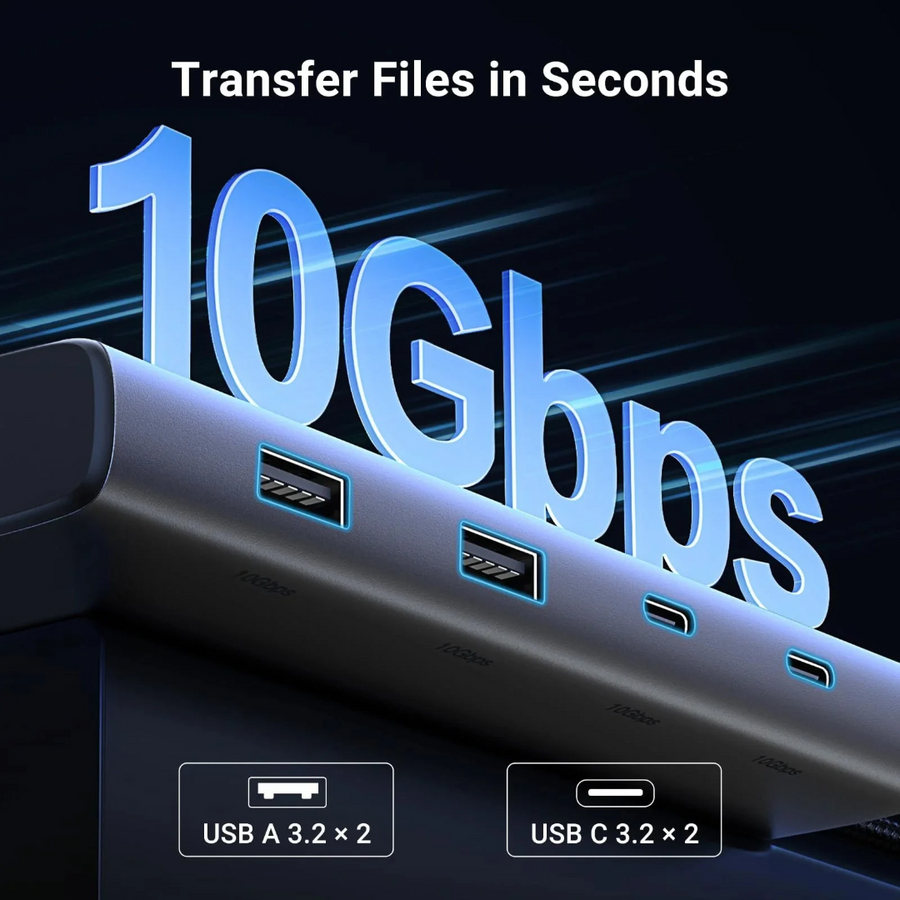

10Gbps Extra-Fast USB 3.2 Gen 2 Ports

Say farewell to obsolete 5Gbps file delays. The device is equipped with 1 USB-C 3.2 Gen 2, and 1 USB-A 3.2 Gen 2 which provide transfer speeds of up to 10Gbps. Transfer files like a 20GB 4K raw video file, or a massive image collection to external NVMe SSDs in just about 20 seconds. Moreover, it includes 2 extra USB-A 3.0 (5Gbps) ports to keep wireless mice, mechanical keyboards, flash drives, and printers connected in real-time.

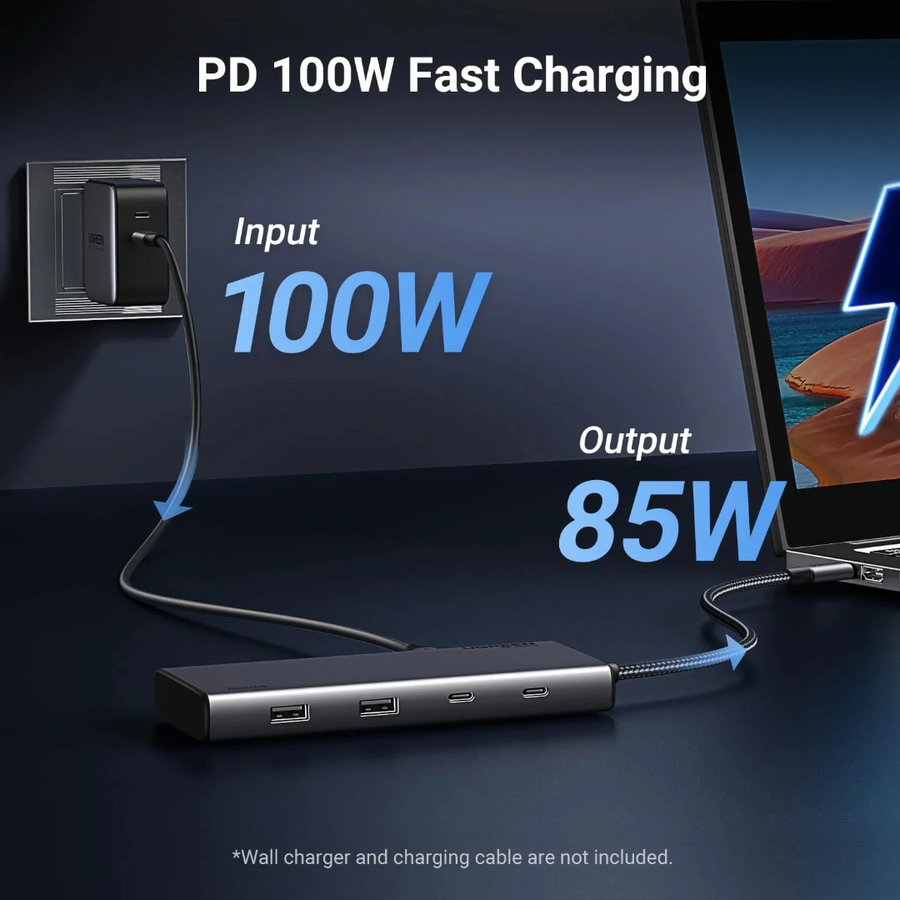

100W Power Delivery Pass-Through & Aluminum Housing

This docking station is outfitted with a standalone 100W USB-C Power Delivery 3.0 connector, which receives a minimal 15W for functioning its own processing hardware. The docking station then forwards up to 85W of efficient continuing power supply to your host laptop. The anodized aircraft aluminum housing of the docking station helps dissipate heat during demanding multi-display and data-intensive sessions. Plug-and-play with Windows, macOS, Linux, ChromeOS, iPadOS, and Android.

IMPORTANT CHARACTERISTICS

• Dual 4K@60Hz Multi-Monitor: Powers up two external 4K screens at 60Hz at the same time through Dual HDMI and DisplayPort (DP 1.4 DSC base is necessary).
• 10Gbps Ultra-Fast Data Transfer: USB Type-C 3.2 Gen 2 and USB Type-A 3.2 Gen 2 provide speeds of 1,050 MB/s.
• 100W PD Pass-Through (85W Net): Powers up high-performance laptops and MacBooks without interruptions from the peripherals.

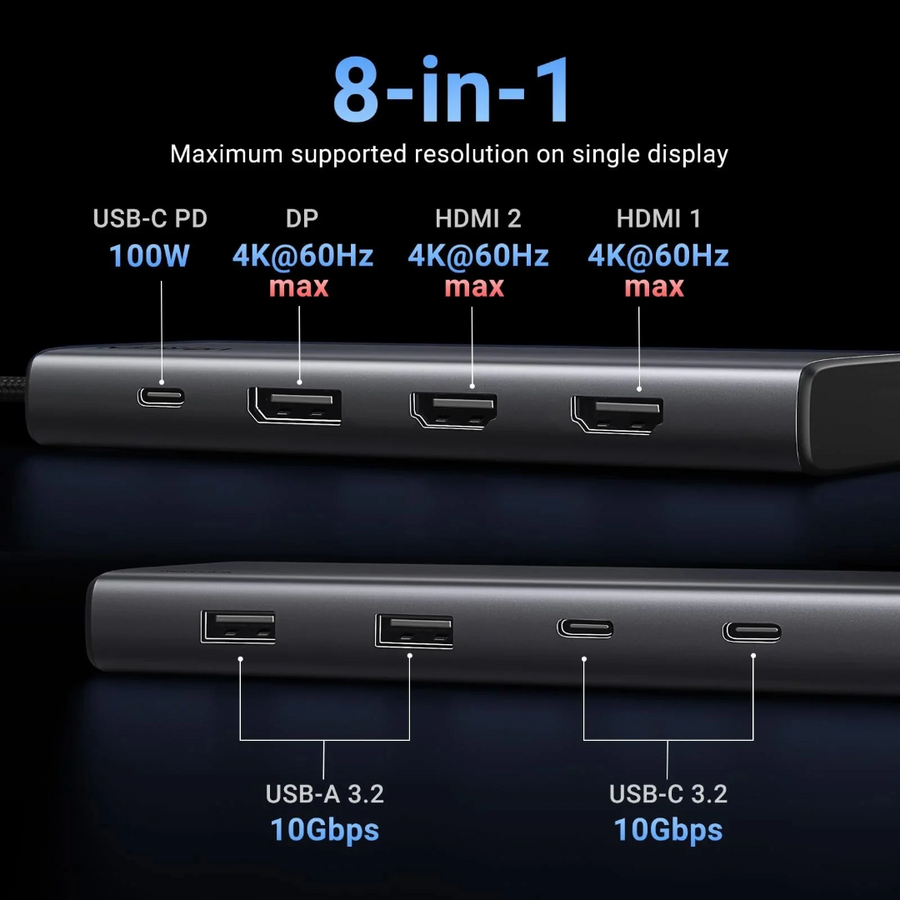

• The 8-Port Workstation Expansion: Two HDMI connectors, one DisplayPort, one USB Type-C connector, one USB Type-A connector, two USB Type-A ports, and one 100W PD connector.

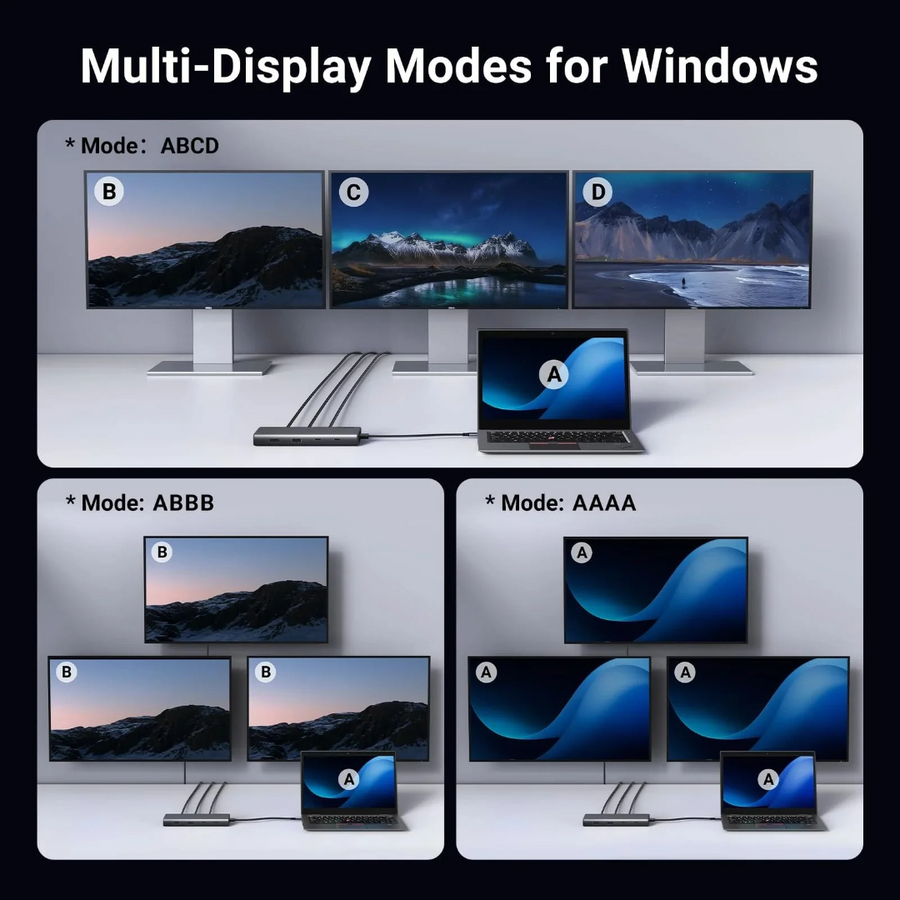

• Windows MST & Multi-Stream Transport: Full multi-screen desktop extension (A-B-C mode on Windows).
• Anodized Aluminum Shell: A smooth finish for quick heat dissipation and protection from scratches.
• Universal Compatibility: Easy to use with different types of devices including Mac Book Pro/Air (M1/M2/M3/M4), Dell XPS, ThinkPad, HP Spectre, ASUS Zenbook, and iPad Pro.

TECHNICAL SPECIFICATIONS

WHAT’S IN THE BOX?

• 1 x UGREEN Revodok Pro 8-in-1 USB-C Dual Monitor Docking Station (35625)
• User Manual & Multi-Language Operating Instructions
• Official Brand Warranty Card

FAQ SECTION

Q: What will be the cost of UGREEN 8-in-1 Docking Station in Nepal?
A: Generally speaking, if you are looking for the retail price of UGREEN 8-in-1 Docking Station, it may fall anywhere between NPR 8,499 and NPR 11,499 from its authorized IT and gadgets retailers such as Brother-mart.

Q: Can this dock connect to dual monitors at 4K 60Hz?
A: Yes! Provided that the Windows laptop has a USB-C/Thunderbolt port with DisplayPort 1.4 and DSC support, it could connect to two external monitors simultaneously, displaying at smooth 4K@60Hz.

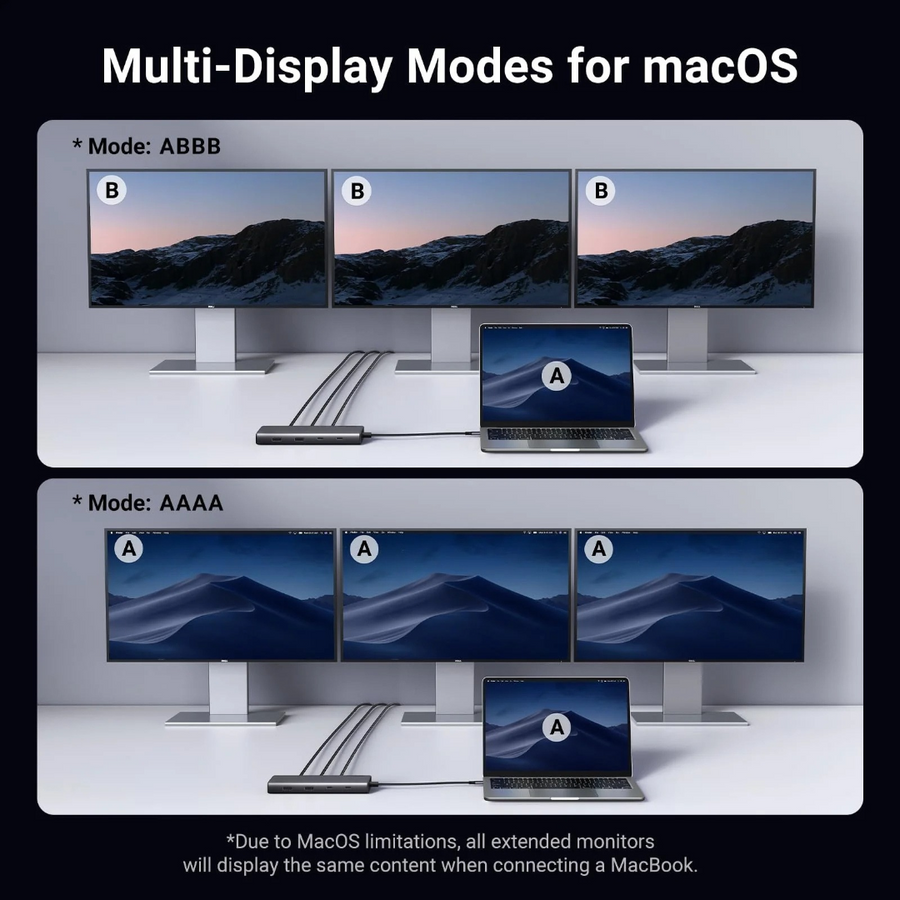

Q: Is it capable of displaying on dual extended screen mode on MacBooks?
A: However, due to the limitations of Apple’s Mac operating software, i.e., absence of native MST support via USB-C, it will end up mirroring all external displays connected via Mac operating machines. Here it has to be mentioned that while utilizing a MacBook, if you want to operate in dual extended screen mode, you will require a Thunderbolt 3/4 dock or an equivalent DisplayLink-certified dock as well.

Q: Do I need to use a wall charger if I want to use the dock?
A: The dock can operate using host bus power only. It would still be wise to attach your laptop's USB-C PD charger to the dock, as this will allow for pass-through charging of your laptop with a maximum power of about 85W.

Q: What advantage is there in having USB-C and USB-A ports working at a speed of 10 Gbps?
A: While standard USB 3.0 hubs operate at speeds of 5 Gbps (~450 MB/s), USB 3.2 Gen 2 ports can surpass this number. With their help, artists can achieve transfer rates of over 1000 MB/s.
